0.02mm Resistance Heating Nichrome Fine Wire NICR8020 wire

Short Description:

Chemical Composition: Nickel 80%, Chrome 20%
Electrical Resistivity: 1.09 ohm mm2/m
Condition: Bright, Annealed, Soft

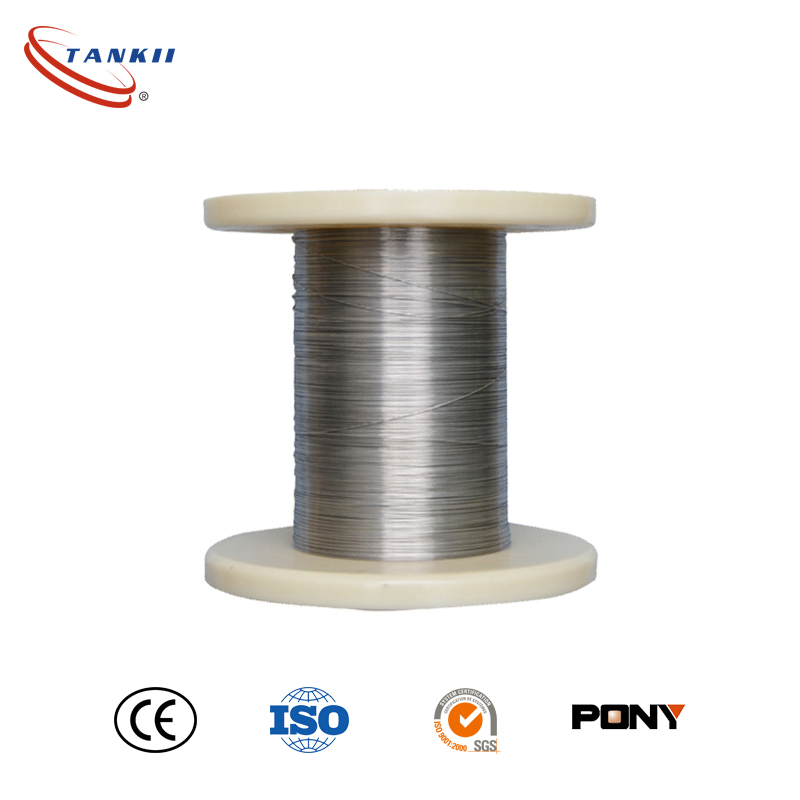

Wire diameter 0.02mm-1.0mm packing in spool
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Producer: Shanghai Tankii Alloy Material Co., Ltd.
We also produce other kind of nickel chromium alloys, such as NiCr 80/20, NiCr 70/30, NiCr 35/20, NiCr 30/20. They are also called Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1
Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
Chromel C, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II, Electroloy, Nichrome, Alloy C, MWS-675, Stablohm 675, NCHW2.

Send email to us

Product Detail

FAQ

Product Tags

Product Description
Grade: Ni80Cr20 ,also called MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V etc.

Chemical Content(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Mechanical Properties of nichrome wire

Max Continuous Service Temperature:	1200ºC
Resisivity 20ºC:	1.09 ohm mm2/m
Density:	8.4 g/cm3
Thermal Conductivity:	60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion:	18 α×10-6/ºC
Melting Point:	1400ºC
Elongation:	Min 20%
Micrographic Structure:	Austenite
Magnetic Property:	nonmagnetic
