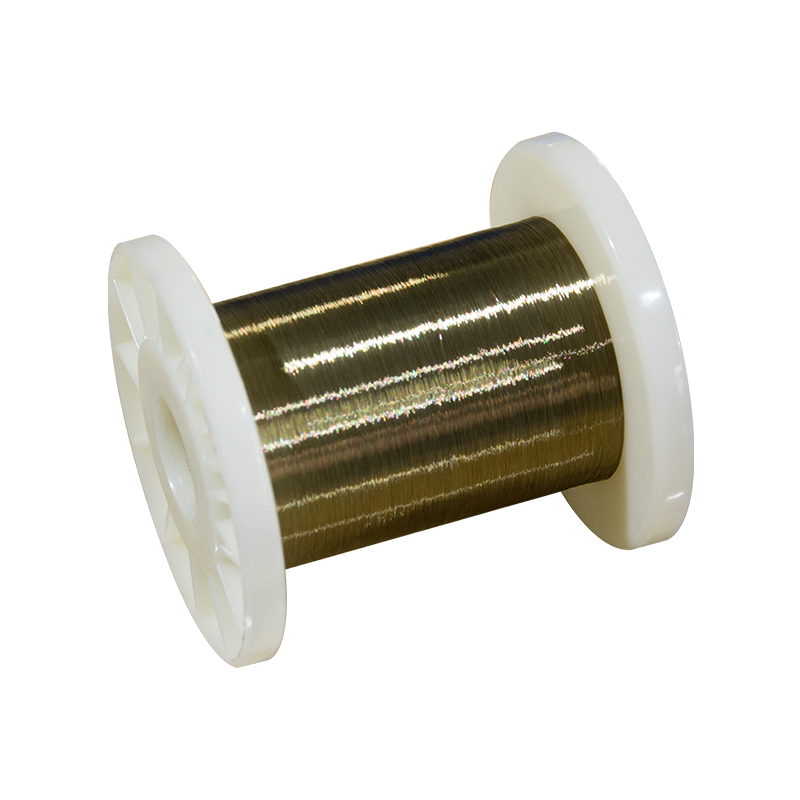

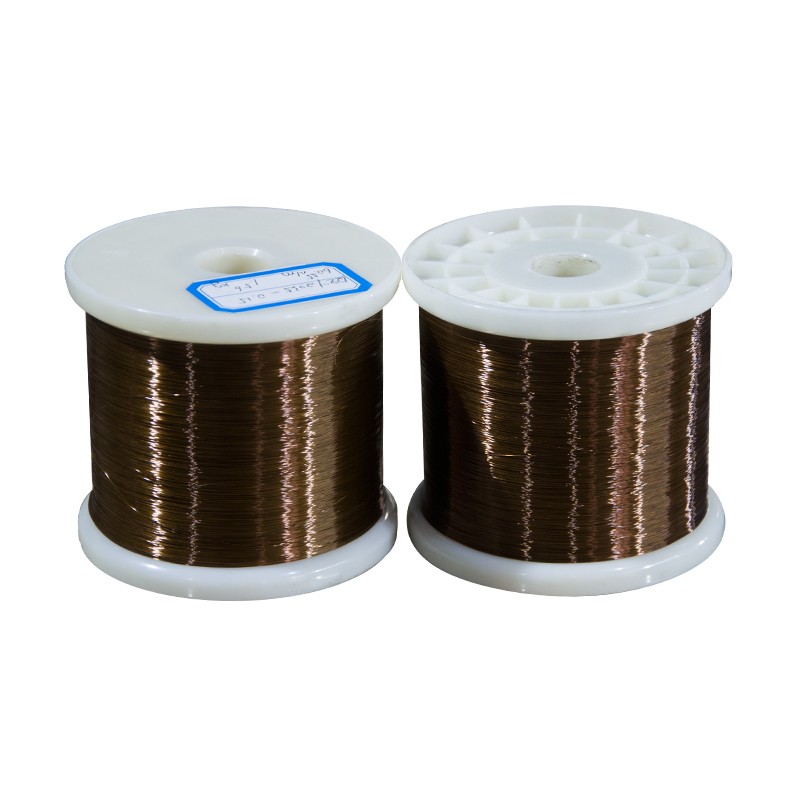

0.08mm Enamelled NICR alloy NiCr20AlSi/nichrome Karma  wire

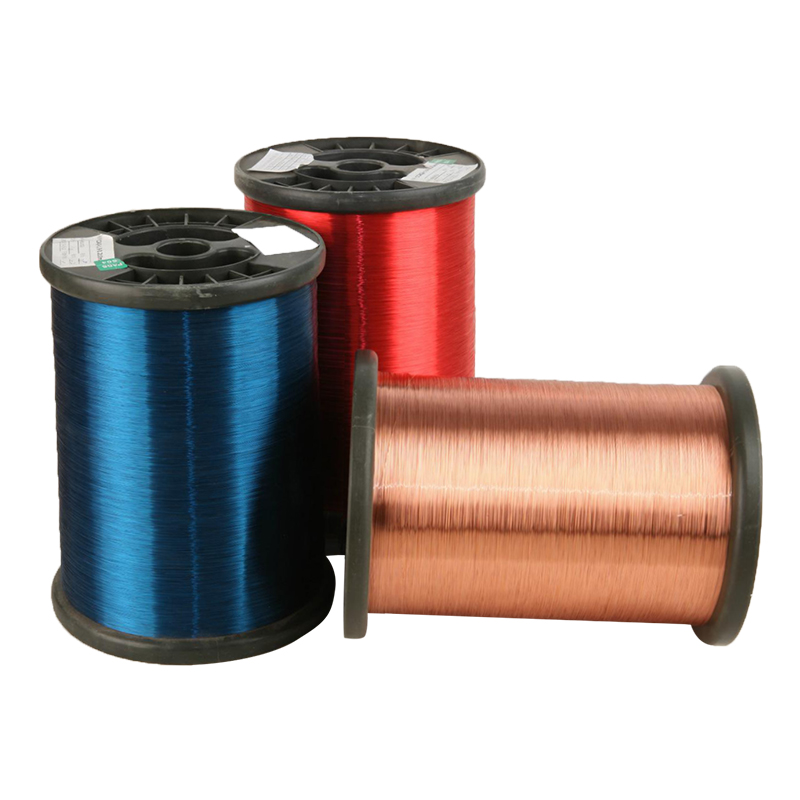

Enameled copper wire is a kind of magnet wire with insulation coating, widely used in motors, transformers, inductors, coils, relays and other electrical and electronic components. It features excellent heat resistance, dielectric strength, adhesion, flexibility and chemical resistance.
Insulation: Polyurethane (PU/UEW), Polyester (PEW), Polyester-imide (EIW), Polyimide (PIW), Polyamide-imide (PAI)
Temperature Class: 130°C, 155°C, 180°C, 200°C, 220°C
Features: Good solderability, high scratch resistance, stable performance, suitable for high-speed winding
Application: Motors, transformers, ballasts, generators, solenoids, household appliances, automotive electronics

Karma  Property

4. Distinctive features of Karma resistance wire

1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
Al and other elements, and thus achieved a precision resistance material with improved
resistance temperature coefficient and heat electromotive force against copper.
With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.

2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,

and the resistance temperature curve turns out to be almost a straight line within a wide
temperature range.

Therefore, the temperature coefficient is set to be the average temperature coefficient between
23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
be adopted for the temperature coefficient.

3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and

exhibits excellent stability over a period of many years.

4) If this is to be used as a precision resistance material, low temperature heat treatment is
required to eliminate processing distortions just as in the case of Manganin wire CMW.

Type of Insulation
