Constantan Jumper Connection Wire/Sheet Cupro-Nickel wire

Short Description:

(Sometimes incorrectly written as Cupernickel) or Coppernickel is an alloy of copper, nickel and strengthening impurities, such as iron and manganese. Cupronickel does not corrode in seawater, because its electrode potential is adjusted to be neutral with regard to seawater. Because of this it is used for marine hardware, and sometimes for the propellers, crankshafts and hulls of premium tugboats, fishing boats and other working boats.
A common use is in many silver-coloured modern circulation coins. A typical mix is 75% copper, 25% nickel, and a trace amount of manganes. In the past true silver coins were debased with cupronickel. Despite high copper content the colour of cupro-nickel is silver.
It is used in thermocouples, and a 55% copper/45% nickel alloy is used to make very accurate resistors.

Send email to us

Product Detail

FAQ

Product Tags

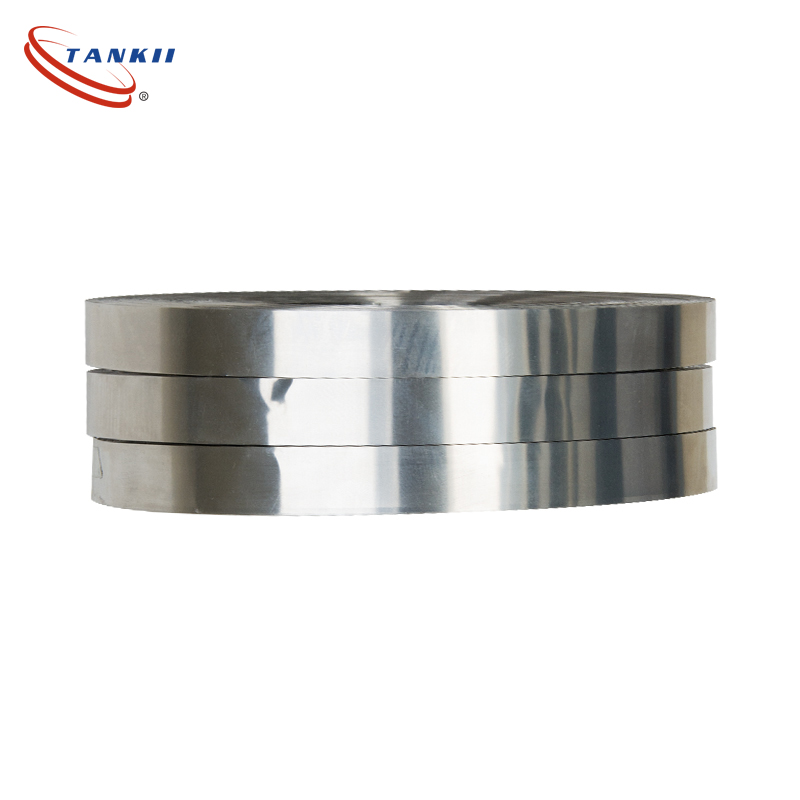

High-Quality CUNI44 Alloy Strip Supply
Product Description

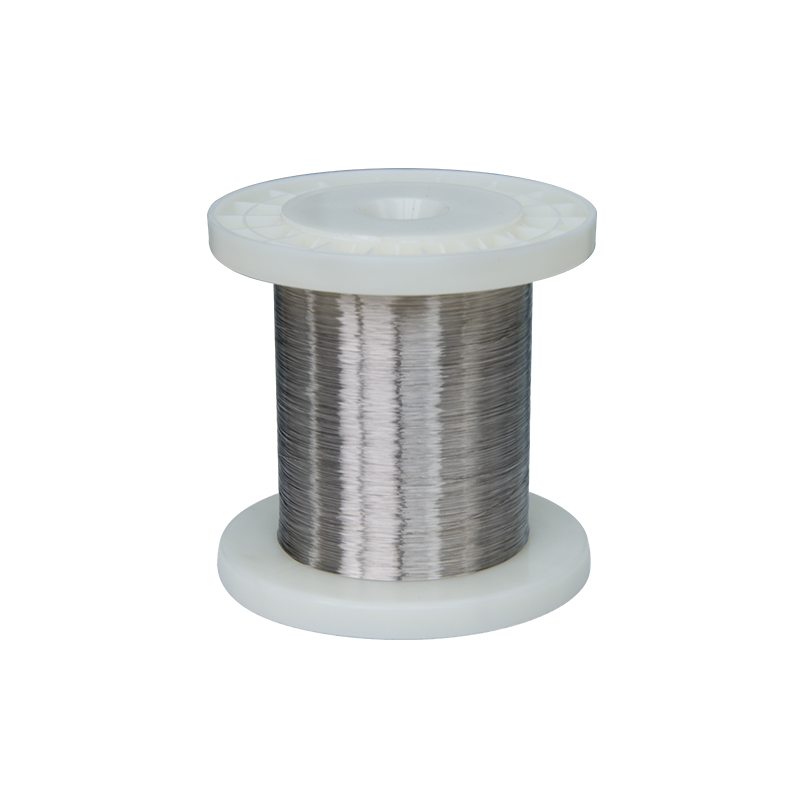

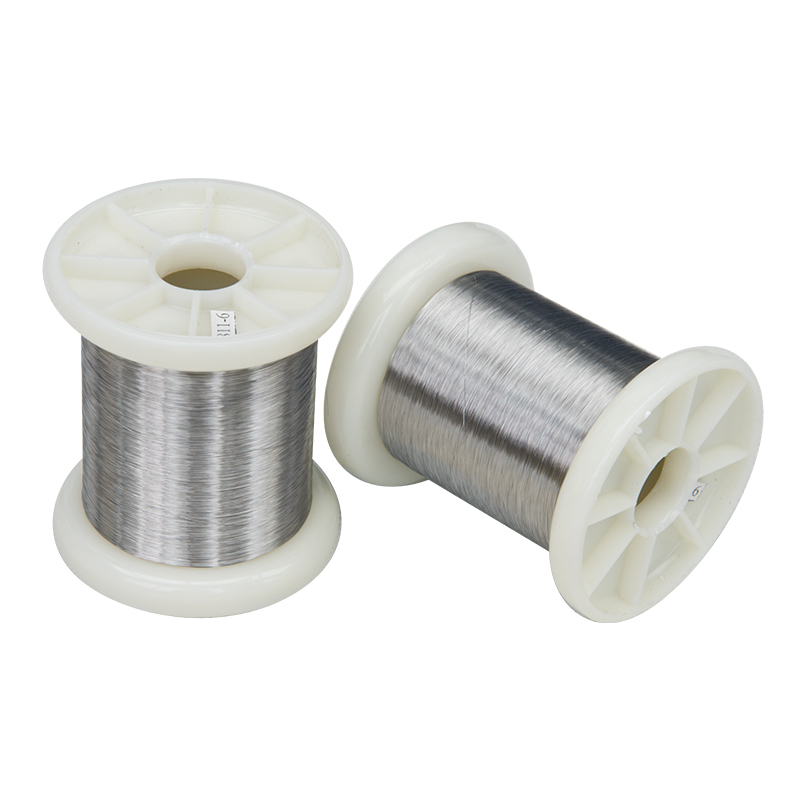

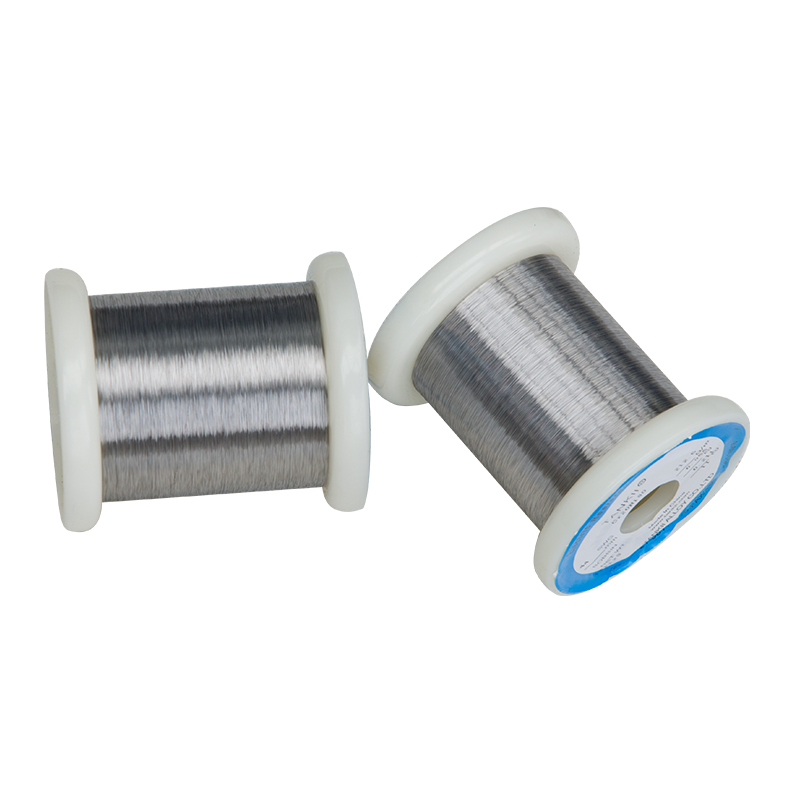

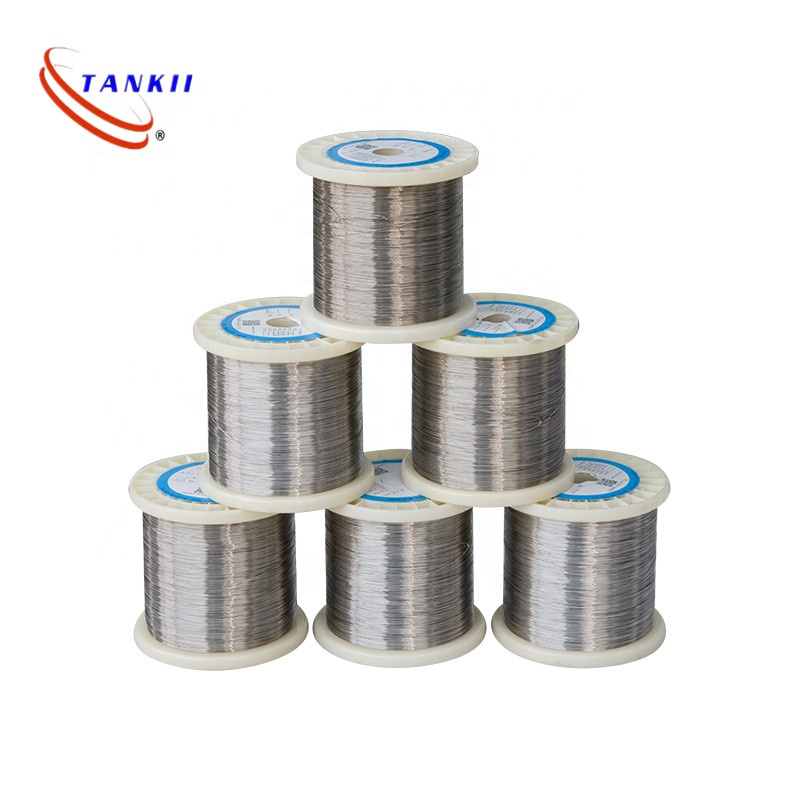

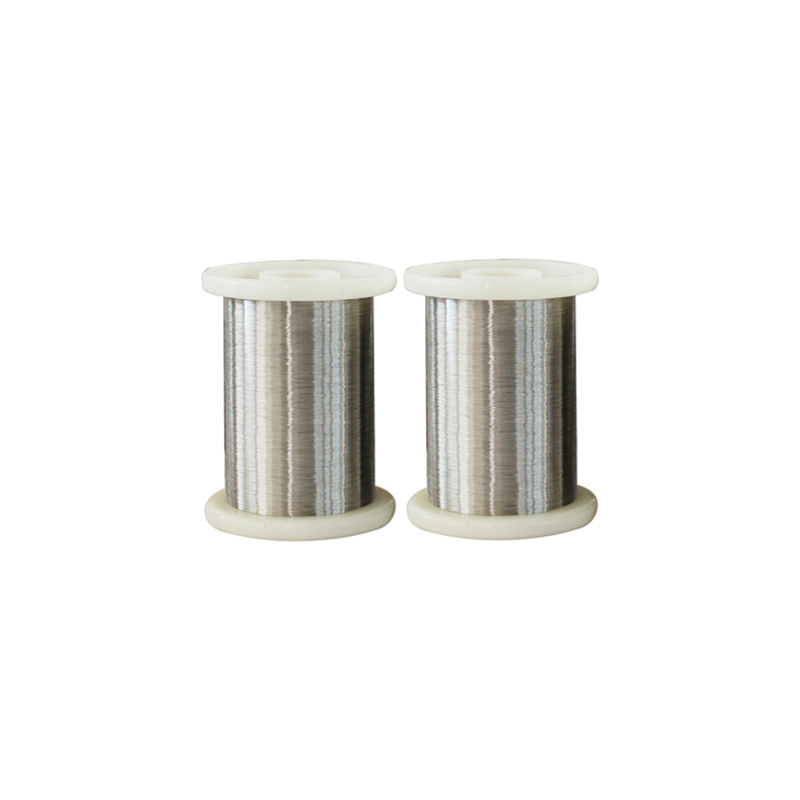

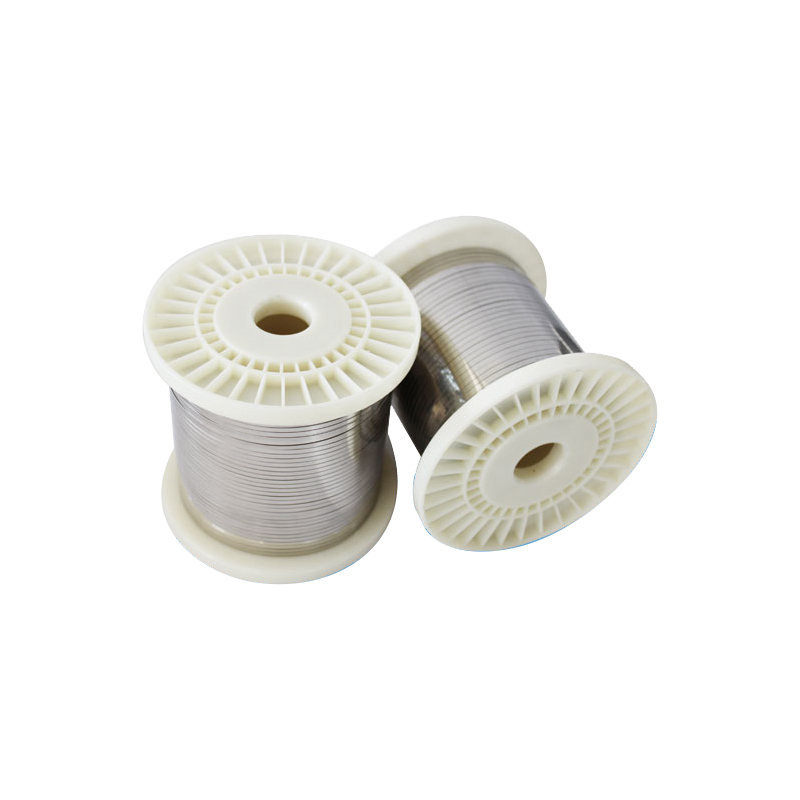

Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the “manganins”. Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.
Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1.50%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non
