Enameled Ni80Cr20 nichrome 80/20 NiCr Resistance Alloy Wire

Short Description:

These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating. Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order. Type Of Nichrome Wire NiCr80/20 ,NiCr70/30 ,NiCr60/15, NiCr90/10,NiCr35/20,NiCr30/20 Tpye of Insulation: 1) Polyester resistance wire , class 130 2) Modified polyester resistance wire , class 155 3) Polyesterimide resistance wire , class 180 4) Polyester (imide) coated with polyamide-imide resistance wire , class 200 5) Polyimide resistance wire , class 220

Send email to us

Product Detail

FAQ

Product Tags

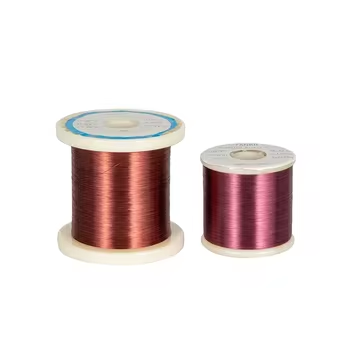

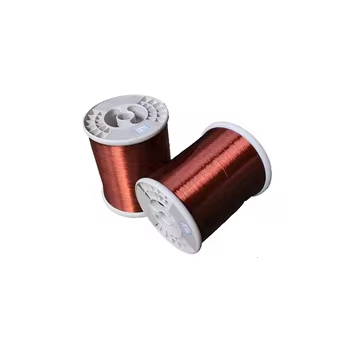

Enameled Ni80Cr20 nichrome 80/20 NiCr Resistance Alloy Wire

Product Description

Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Size:

Round wire:0.018mm~3.0mm

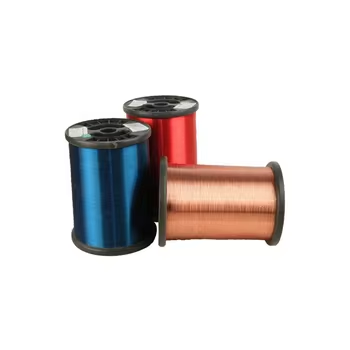

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size

nicr8020 alloy heating wire

1.About Nichrome wire

Nichrome alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.

Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, Cr25Ni20, pure nickel Ni200 and Ni201

FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.

Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni

Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil

size:Wire: 0.01mm-10mm Ribbon: 0.05*0.2mm-2.0*6.0mm Strip: 0.5*5.0mm-5.0*600mm Bar: 10-100mm

Insulation-enamelled Name	Thermal LevelºC(working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH(DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Tpye of Insulation:

1) Polyester resistance wire , class 130

2) Modified polyester resistance wire , class 155

3) Polyesterimide resistance wire , class 180

4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

5) Polyimide resistance wire , class 220

Tpye of Bare Wire

mainproperty type		Cuni1	CuNI2	CuNI6	CuNi8	CuNI10	CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
mainchemical composition	Ni	1	2	6	8	10	14.2	19	23	30	34	44
	MN	/	/	/	/	/	0.3	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	250	300	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05±10%	0.10±10%	0.12±10%	0.15±10%	0.20±5%	0.25±5%	0.30±5%	0.35±5%	0.40±5%	0.49±5%
temperaturecoefficient of resistance		<100	<120	<60	<57	<50	<38	<25	<16	<10	-0	<-6
tensilestrength mpa		>210	>220	>250	>270	>290	>310	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25	>25	>25
meltingpoint °c		1085	1090	1095	1097	1100	1115	1135	1150	1170	1180	1280
coefficient ofconductivity		145	130	92	75	59	48	38	33	27	25	23
