Enameled winding wire Copper Nickel Wire CuNi44 NC050 CuNi44Mn

Short Description:


Product Detail

FAQ

Product Tags

Product Description

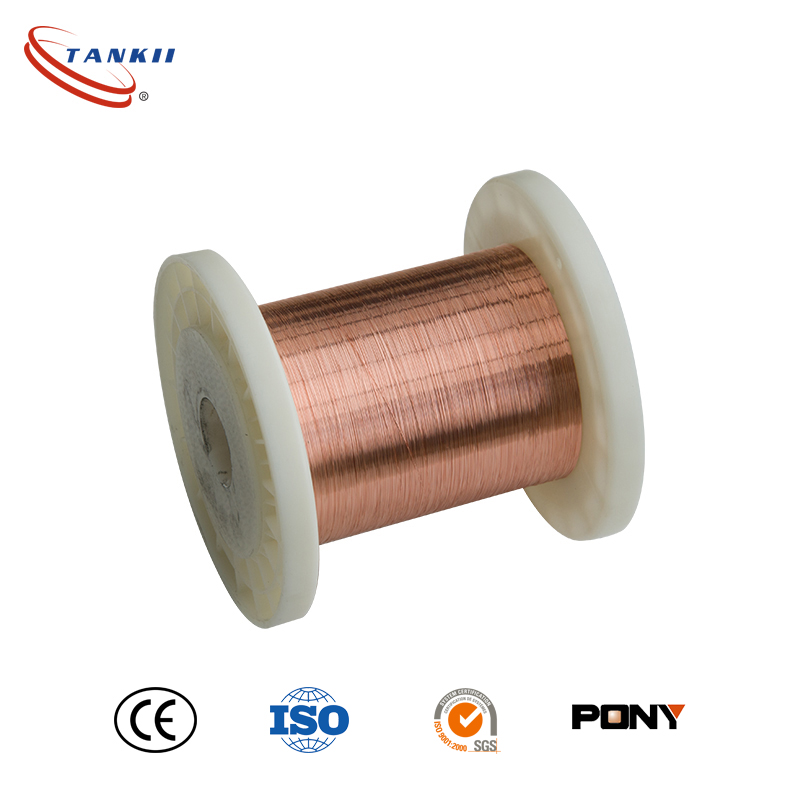

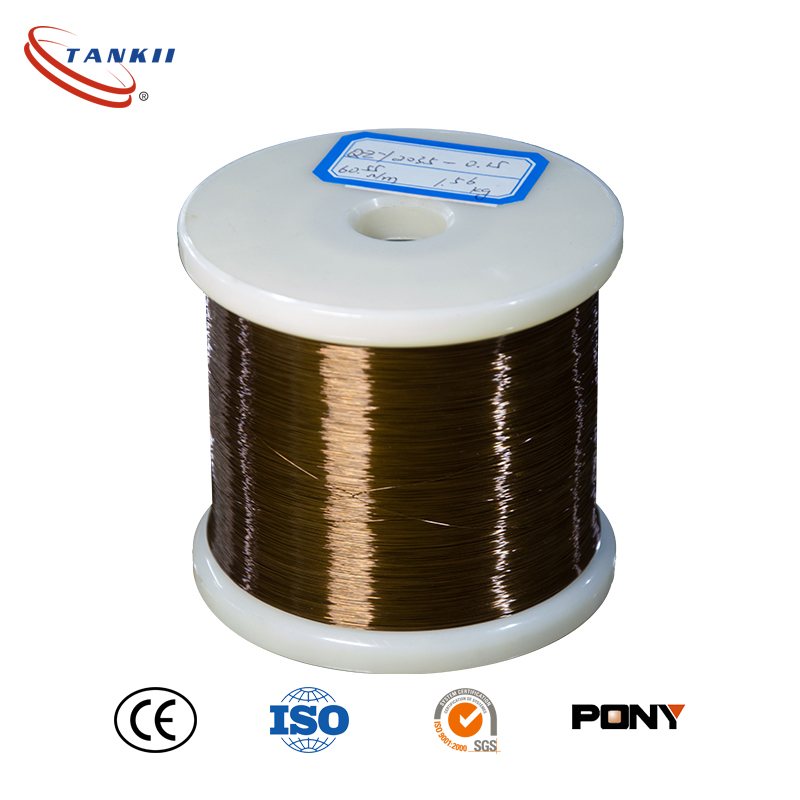

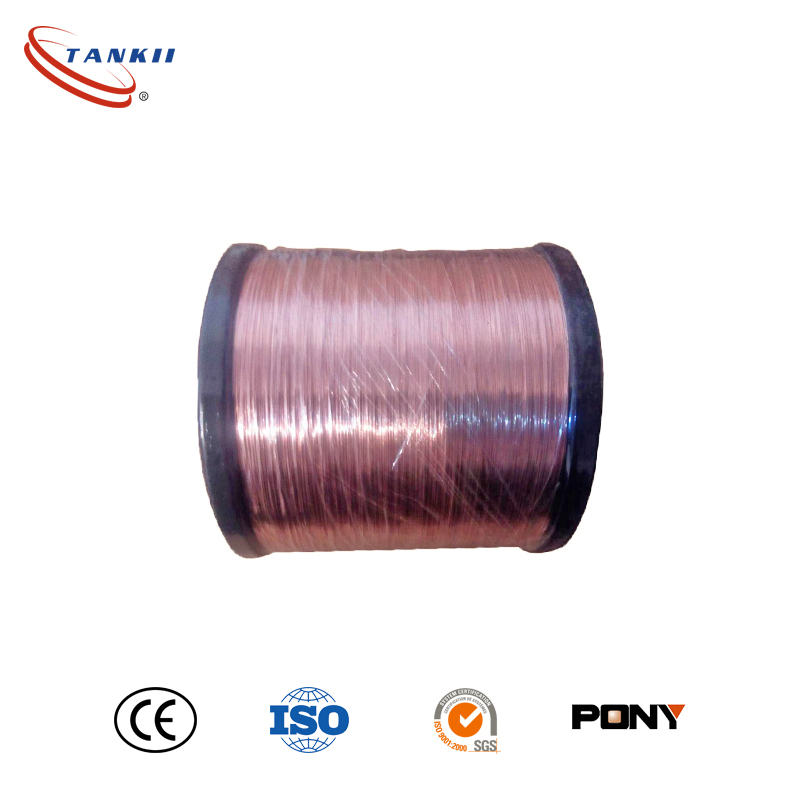

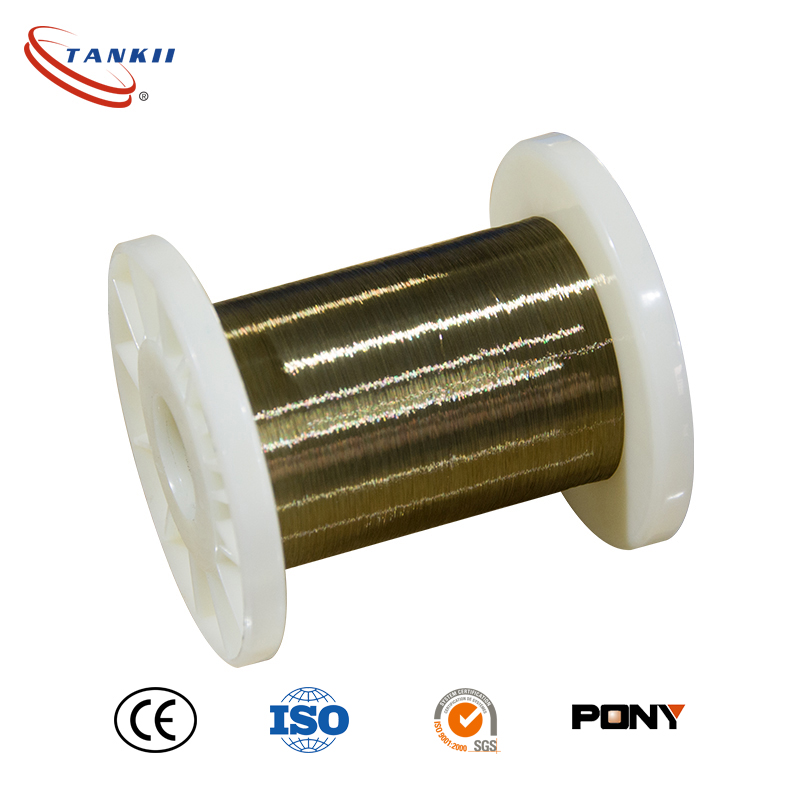

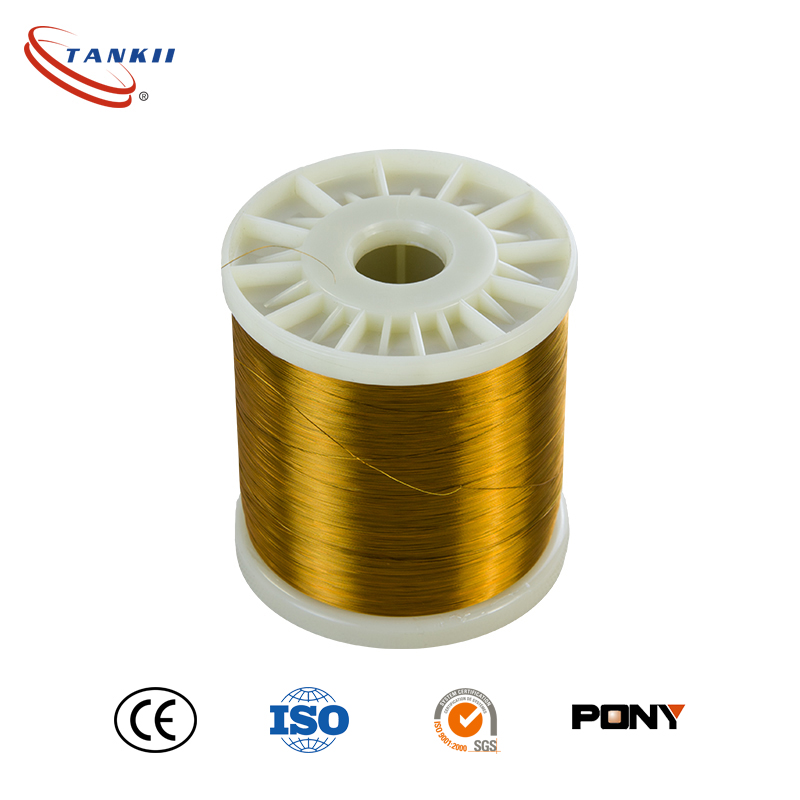

CuNi2 Alloy / Low Temperature Heating Copper nickel Wire

Product Description
CuNi2 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
2 - - - Bal - ND ND ND ND

Mechanical Properties

Max Continuous Service Temp 200ºC
Resisivity at 20ºC 0.05±10%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity 100(max)
Melting Point 1280ºC
Tensile Strength,N/mm2   Annealed,Soft 140~310 Mpa
Tensile Strength,N/mm2   Cold Rolled 280~620 Mpa
Elongation(anneal) 25%(min)
Elongation(cold rolled) 2%(min)
EMF vs Cu, μV/ºC (0~100ºC) -8
Micrographic Structure austenite
