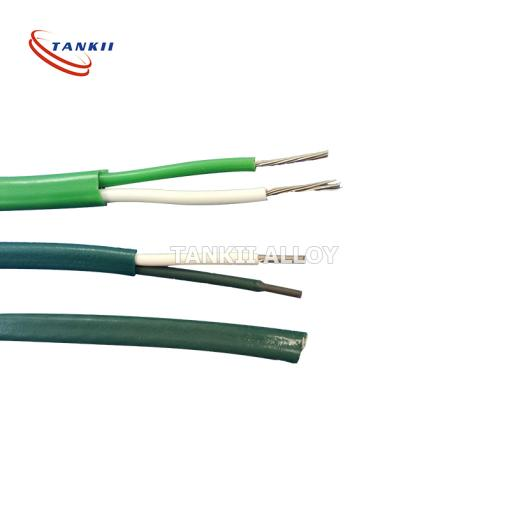

Our company offers a comprehensive range of high - precision thermocouple extension wires. These extension wires are manufactured to strict industry standards, ensuring excellent temperature compensation and minimal signal distortion. They are available in various types, such as J, K, T, E, S, and R, which can be perfectly matched with different thermocouple types in the market. The materials used in our extension wires are highly resistant to oxidation and corrosion, providing long - term stability in different working environments.

When it comes to the specific operation steps of extending thermocouple wires, first, you need to cut the original thermocouple wire at an appropriate position with a sharp wire cutter. Then, strip about 1 - 2 cm of the insulation layer at the cut end of both the original wire and the extension wire using wire strippers. Next, twist the bare metal wires of the original wire and the extension wire together firmly, ensuring good electrical contact. After that, use a soldering iron and solder to solder the twisted part, enhancing the connection reliability. Finally, cover the soldered joint with heat - shrink tubing and apply heat with a heat gun to shrink the tubing, providing insulation and protection.

For the special tools and materials required, besides the mentioned wire cutters, wire strippers, soldering iron, solder, and heat - shrink tubing, you may also need a multimeter to check the electrical continuity of the extended wire before installation. Our company can provide a complete set of accessories along with the thermocouple wire and extension wire products, saving you the trouble of sourcing them separately.

After extending the thermocouple wire, calibration is necessary to ensure accurate temperature measurement. One common calibration method is to use a calibrated temperature source. Place the thermocouple junction in a known - temperature environment, such as a dry - block calibrator or a furnace with a stable temperature setting. Then, measure the output voltage of the thermocouple using a precision digital multimeter. Compare the measured voltage with the standard voltage - temperature table corresponding to the thermocouple type. If there is a deviation, adjust the measurement system or the calibration parameters according to the deviation value. Our technical support team can provide detailed calibration guidance to ensure that you can complete the calibration process smoothly.

In addition to using proper extension wires, correct installation is also key. Poorly installed extensions can introduce additional resistance, noise, and errors. Our products come with detailed installation guidelines, and our technical support team is always ready to assist you with any installation - related questions.

Another advantage of our thermocouple wire products is their durability. Made from high - grade materials, they can withstand harsh environmental conditions, including high temperatures, humidity, and chemical exposure. This means that even when extended, our thermocouple wires will maintain stable performance over a long service life.

In conclusion, extending thermocouple wire is possible, and with our reliable thermocouple wire and extension wire products, as well as comprehensive support services, you can confidently expand your temperature measurement systems. Whether it's for industrial applications, scientific research, or other fields, our products provide accurate, stable, and long - lasting solutions for your temperature - sensing needs.
