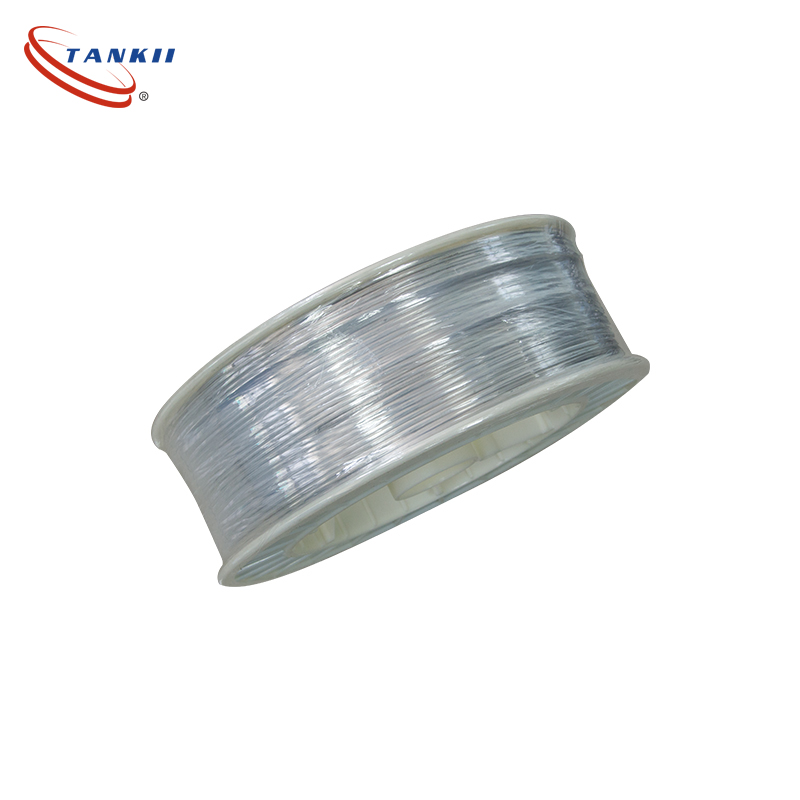

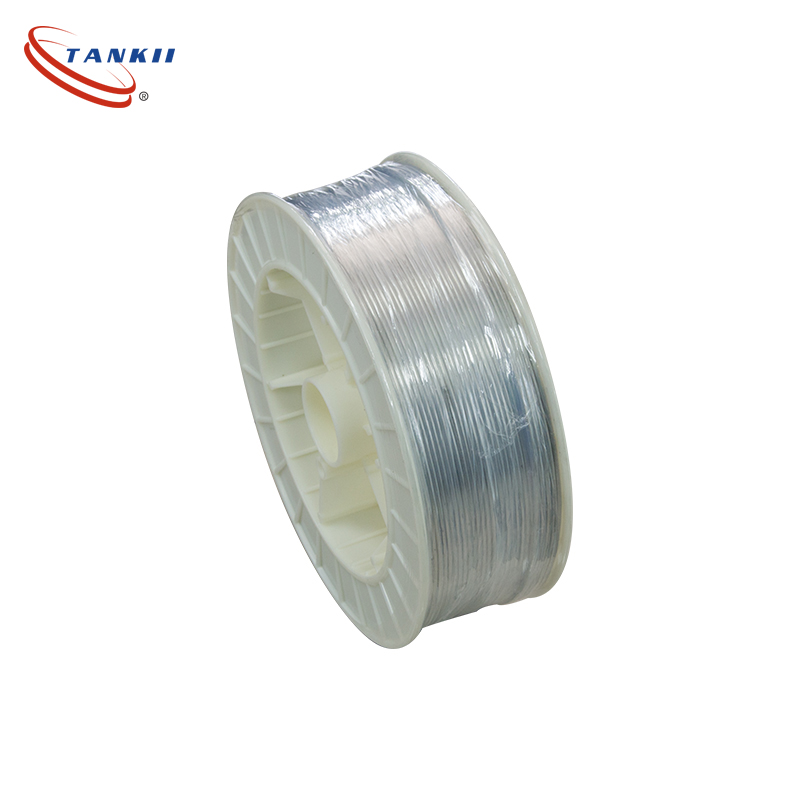

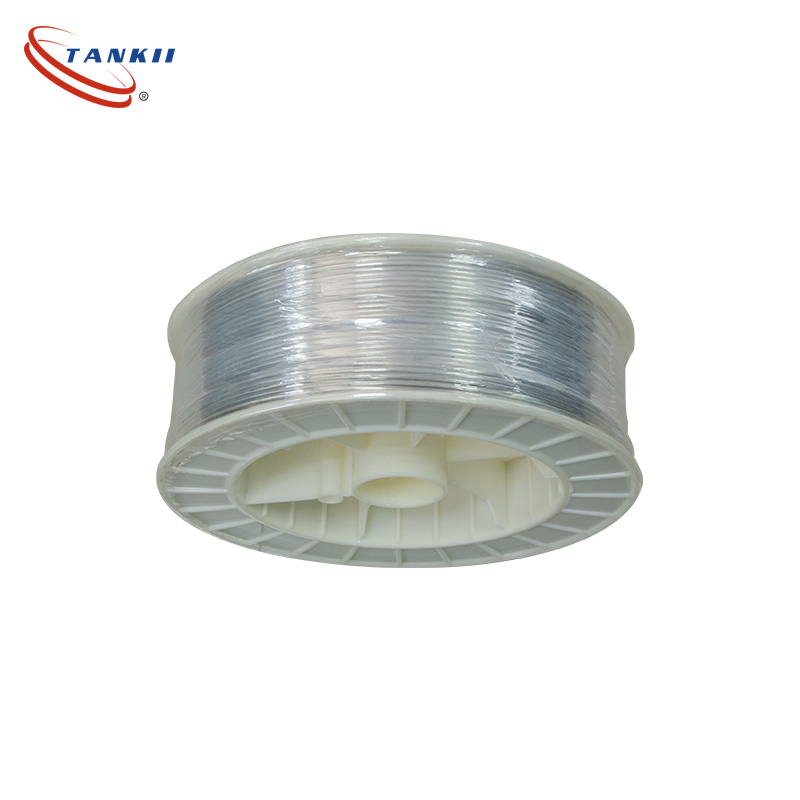

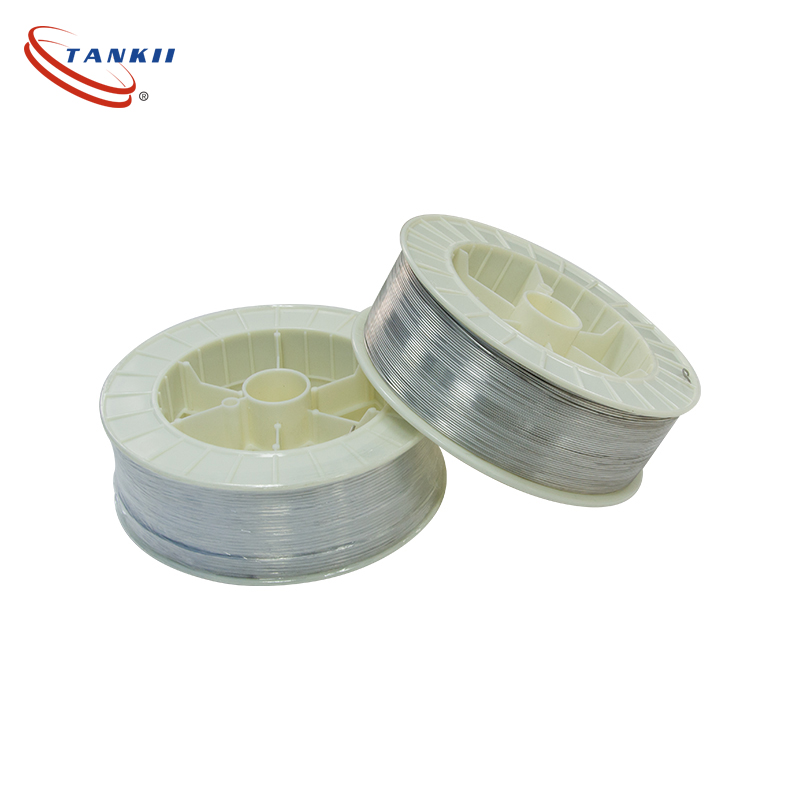

1.6mm thermal spray wire 45CT for Combustion Furnace

Short Description:


Product Detail

FAQ

Product Tags

Thermal spray wire 1.6mm 2.0mm 3.175mm
Thermal spraying wire in a wide range of alloys for high-temperature corrosion protection, bonding layers, build-up coating and sealing.

Nickel based alloy Thermal Spray wire

45CT is a  nickel chromium titanium wire specifically designed for arc spraying. It produces dense, well-bonded coatings with excellent corrosion resistance and good wear resistance. It is highly resistant to sulfur and vanadium atmospheres up to 1825° F. It has proven to be particularly effective as a protective arc spray coating for boiler tubes in black liquor recovery boilers and coal fired utility boilers.

This alloy is a nickel aluminium titanium alloy characterized strong resistance to high temperature corrosion oxidation.
Typical applications for 45CT are widely used in combustion furnace,Boiler water wall tube, fan blade.

Normal composition%

Cr      Ni      C Mn Fe S Si Cu Ti P Other
42-46      Bal. 0.01-0.1 ≤0.2 ≤0.5 ≤0.015 ≤0.2 ≤0.5 0.3-1.0 ≤0.02 ≤0.5

Typical Deposit Characteristics

Coating Harness Coating Strength  Yield Strength  Elongation
45 HRC 48Mpa 295Mpa  ≤22%

Specific heat capacity

Melting point (ºC) 1450
Max continuous operating temperature in air (ºC) 1250
Magnetic properties non-magnetic
