0.05 mm thick Pure Nickel Flat wire Ni200/201

Short Description:


Product Detail

Product Tags

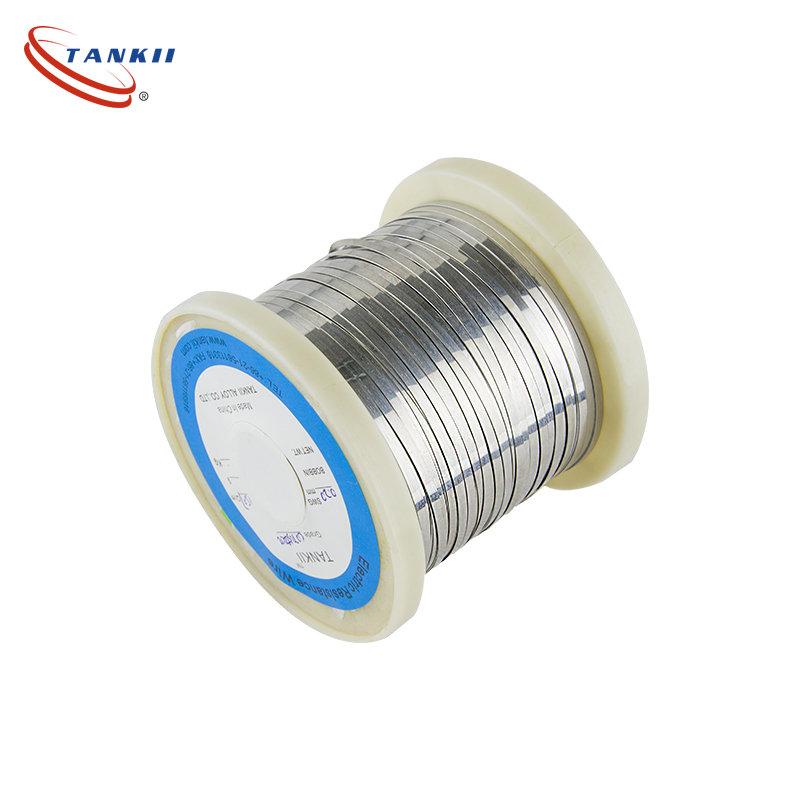

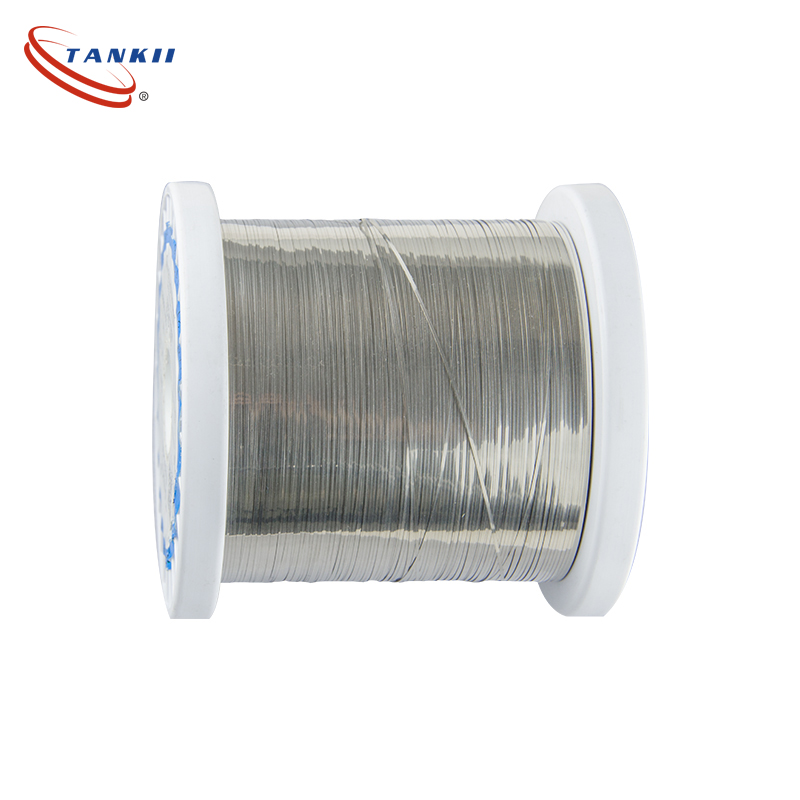

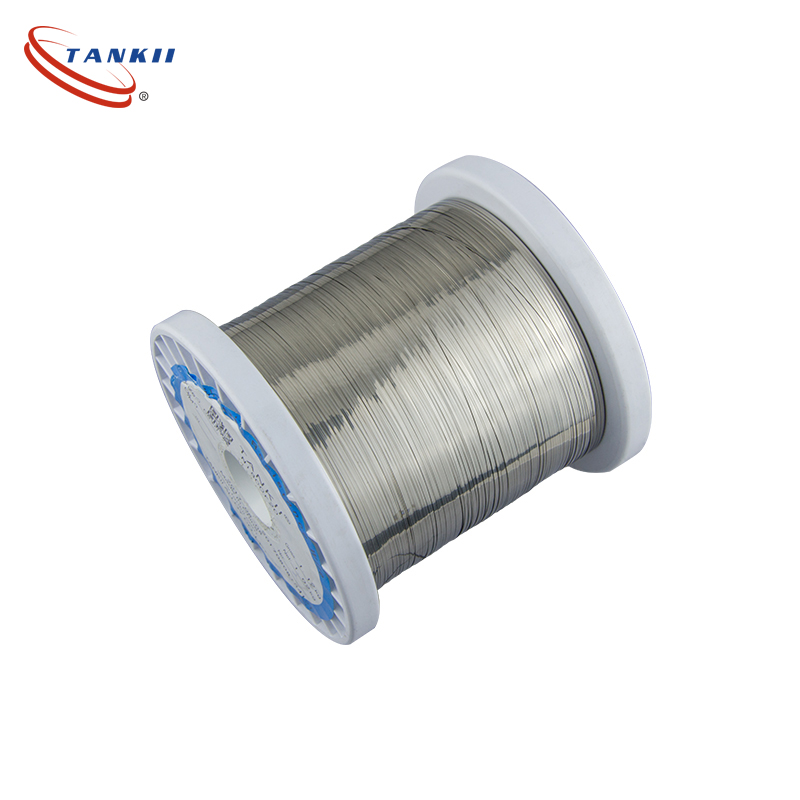

Wholesale Ni200 N6 NW2200 0.3mm Nickel Strip used for Battery

Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600F.  It has outstanding magnetic properties and thermal and electrical conductivity.

Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.

Chemical Composition of Pure Nickel Strip:

Nickel 99.6%
Copper 0.25%
Iron 0.40%
Manganese 0.35%
Carbon 0.15%
Silicon 0.35%
Sulfur 0.01%

Mechanical Properties

Density
(g/cm3)
8.89
Melting Range
(°C)
1435-1446
Specific Heat
( J/kg/ °C)
456
Curie Temperature
(°C)
360

58 60 61
