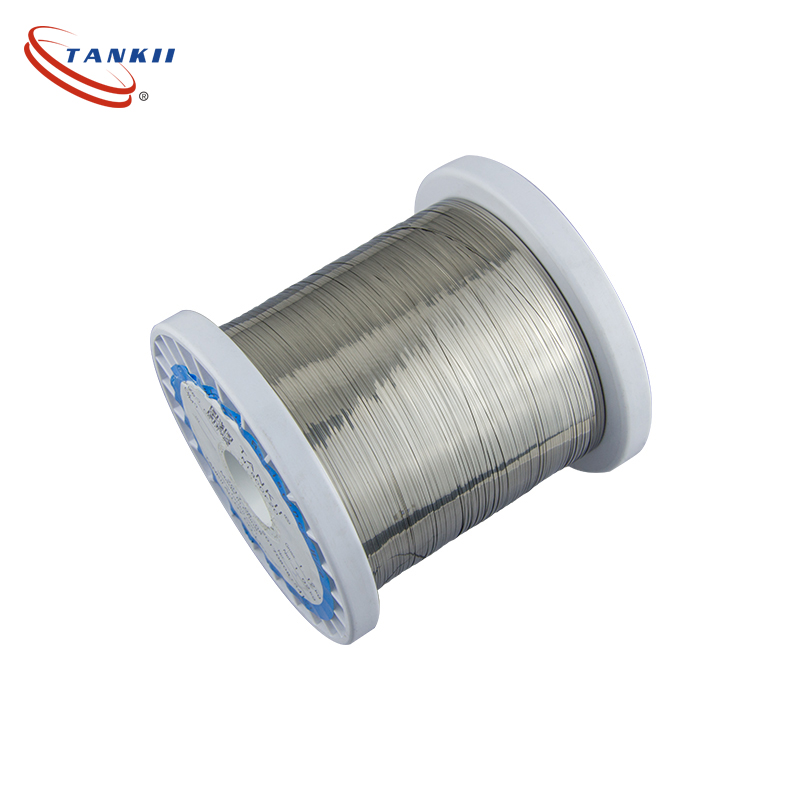

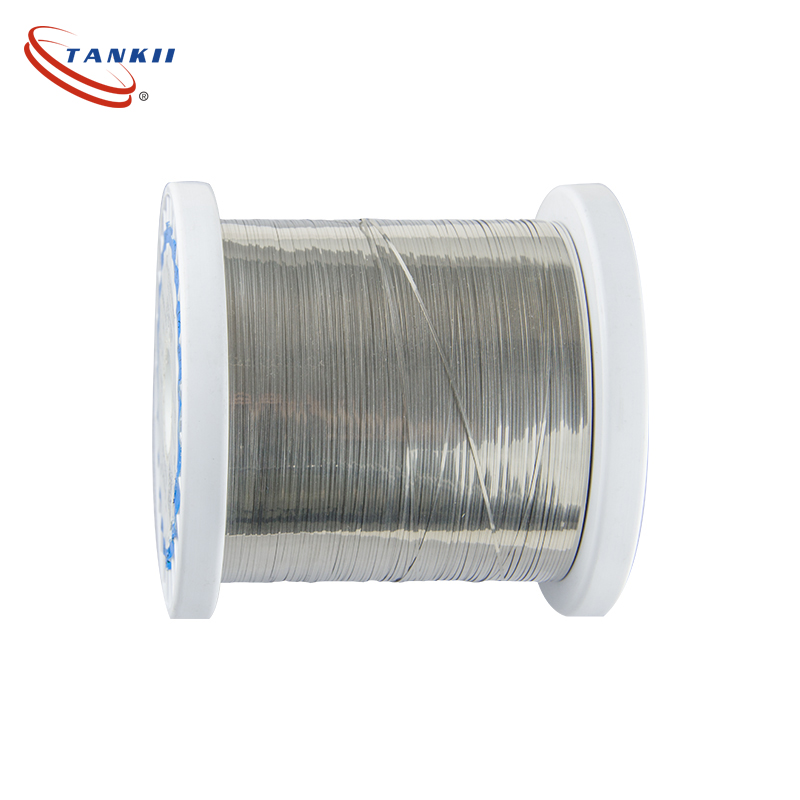

0.1*0.21mm Pure Nickel Flat Wire Ni200/201

Short Description:

Send email to us

Product Detail

Product Tags

Factory Price with High Quality 0.5*100mm Pure Nickel Strip Ni200/201

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength
Nickel foil and nickel strip for battery
Pure nickel grade: Ni200,Ni201, N4,N6
Note:
NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).
Alloy Description
Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.
Condition of Supply
Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Foil Capabilities

Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.002 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard

Nickel Foil Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
