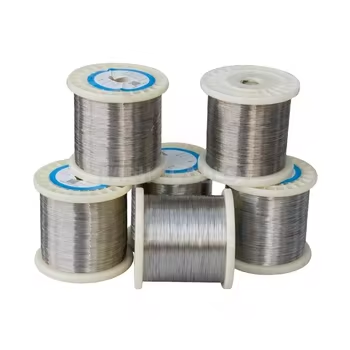

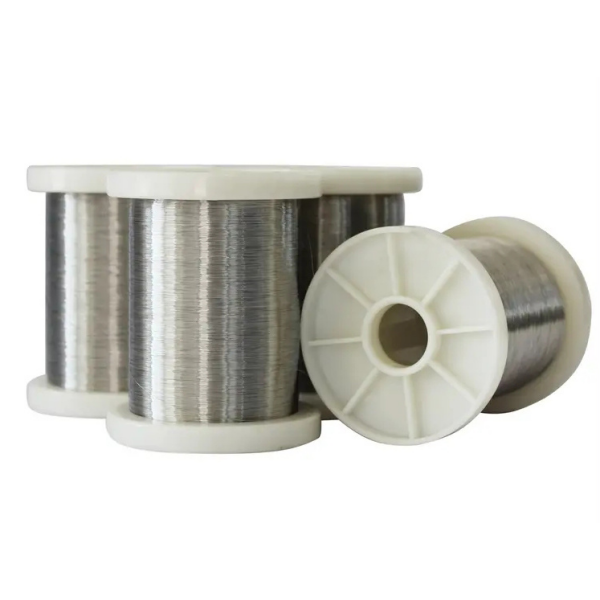

0Cr13Al4 Durable FeCrAl Alloy Electric Heating Resistance Wire
0Cr13al4 FeCrAl Alloy Electric Heating Resistance Wire
Chemical Content: none
Company Name: Shanghai Tankii Alloy Material Co., Ltd.
Product Name: 0Cr13al4 FeCrAl Alloy Electric Heating Resistance Wire
Keywords: iron chrome aluminium wire, resistance wire, heating resistant wire, 0Cr25Al5, Iron chromium aluminum flat wire, iron chromium aluminium wire, heating element, wire, electric wire, heating cable
Attributes: Product Type: Lump, Material: Other, Carbon Content: Low Carbon
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other | |
| Max | ||||||||||
| 0.12 | 0.025 | 0.020 | 0.50 | ≤0.7 | 12.0~15.0 | ≤0.60 | 4.0~6.0 | Balance | - | |
Product Name: 0Cr13al4 FeCrAl Alloy Electric Heating Resistance Wire
Keywords: iron chrome aluminium wire, 0Cr13al4, resistance wire, heating resistant wire, 0Cr25Al5, Iron chromium aluminum flat wire, iron chromium aluminium wire, heating element, wire, electric wire, heating cable
Attributes: Product Type: Lump, Material: Other, Carbon Content: Low Carbon
Description: The 0Cr13al4 FeCrAl Alloy Electric Heating Resistance Wire is a high-quality heating element wire made of iron, chromium, and aluminum. It has excellent resistance to high temperatures and is suitable for various heating applications. This wire is low in carbon content, making it a reliable and efficient choice for heating cables and other electrical wire needs.
| Max Continuous Service Temperature: Resisivity 20ºC: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
950ºC 1.25ohm mm2/m 7.40g/cm3 52.7 KJ/m·h·ºC 15.4×10-6/ºC (20ºC~1000ºC) 950ºC Min 16% Ferrite magnetic |
Temperaure Factor of Electrical Resistivity
Shanghai Tankii Alloy Material Co., Ltd. offers the 0Cr13al4 FeCrAl Alloy Electric Heating Resistance Wire. This iron chrome aluminium wire is a heating resistant wire that can be used as a heating element in various applications. It is a low carbon wire with excellent electrical resistivity properties. Choose this reliable and efficient wire for your heating cable needs.
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1.000 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.120 | 1.132 | 1.142 | 1.150 | - | - | - |
