Inventory Dia. 0.4mm Enamel-coated Nickel-Chromium wire Ni20Cr80 Wire

Short Description:

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Type Of Bare Alloy Wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm

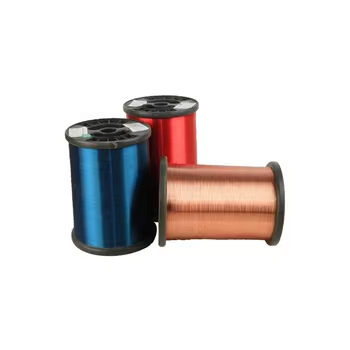

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
nicr8020 alloy heating wire
1.About Nichrome wire
Nichrome alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.
Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, Cr25Ni20, pure nickel Ni200 and Ni201
FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.
Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni
Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil
size:Wire: 0.01mm-10mm Ribbon: 0.05*0.2mm-2.0*6.0mm Strip: 0.5*5.0mm-5.0*600mm Bar: 10-100mm

Send email to us

Product Detail

FAQ

Product Tags

Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Size:

Round wire:0.018mm~3.0mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size

nicr8020 alloy heating wire

1.About Nichrome wire

Nichrome alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.

Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, Cr25Ni20, pure nickel Ni200 and Ni201

FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.

Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni

Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil

size:Wire: 0.01mm-10mm Ribbon: 0.05*0.2mm-2.0*6.0mm Strip: 0.5*5.0mm-5.0*600mm Bar: 10-100mm

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Tpye of Insulation:

1) Polyester resistance wire , class 130

2) Modified polyester resistance wire , class 155

3) Polyesterimide resistance wire , class 180

4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

5) Polyimide resistance wire , class 220

Tpye of Bare Wire

main property type		Cuni1	CuNI2	CuNI6	CuNi8	CuNI10	CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
main chemical composition	Ni	1	2	6	8	10	14.2	19	23	30	34	44
	MN	/	/	/	/	/	0.3	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	250	300	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05± 10%	0.10± 10%	0.12± 10%	0.15± 10%	0.20± 5%	0.25± 5%	0.30± 5%	0.35± 5%	0.40± 5%	0.49± 5%
temperature coefficient of resistance		<100	<120	<60	<57	<50	<38	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>270	>290	>310	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1097	1100	1115	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	75	59	48	38	33	27	25	23
